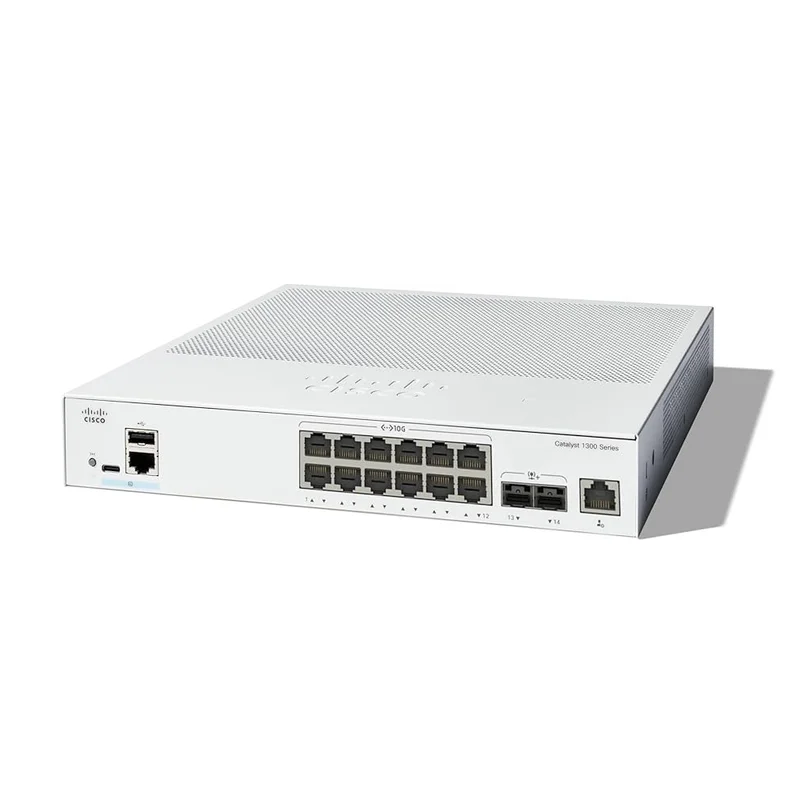

Name: Cisco Catalyst 1300 12-port 10GE, 2x10G SFP+
SKU: C1300-12XT-2X
Price: 1374.90 EUR
Availability: InStock

Суич, тип

Fixed Port

Общ брой портове

15

Основни портове, тип

10GBase-T

Power Over Ethernet (PoE)

No

Uplink портове

2x10GE SFP

Свободни (10GB) слотове

No

Управление

Yes

Stackable

Yes

Fans

N

Захранване

Internal

Routing

Dynamic

Памет (Flash, RAM)

512 MB (Flash), 1 GB DDR4 (DRAM), 3 MB (Packet buffer)

Капацитет за маршрутизиране/превключване, Gbps

280 Gbps

Пропускателна способност, Mpps

208.33 Mpps

MAC адреси

16 000 addresses

VLAN (брой, стандарти)

Support for up to 4093 VLANs simultaneously; Port-based/802.1Q tag-based/MAC-based/protocol-based/IP subnet-based/Management/Private/ Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS; ASV; Voice/Multicast TV VLAN

QoS

8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP

L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u/ab/ad/z/x/ae/an/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC

IPv6 functionality

IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD

Сигурност

SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs

Размери (Ш, Д, В), mm

300 x 268 x 44 mm

Опция за монтаж

Rackmount

Weight

3.2 kg

Dimensions

0 x 0 x 0 cm

Warranty

99 months

Cisco Catalyst 1300 12-port 10GE, 2x10G SFP+
