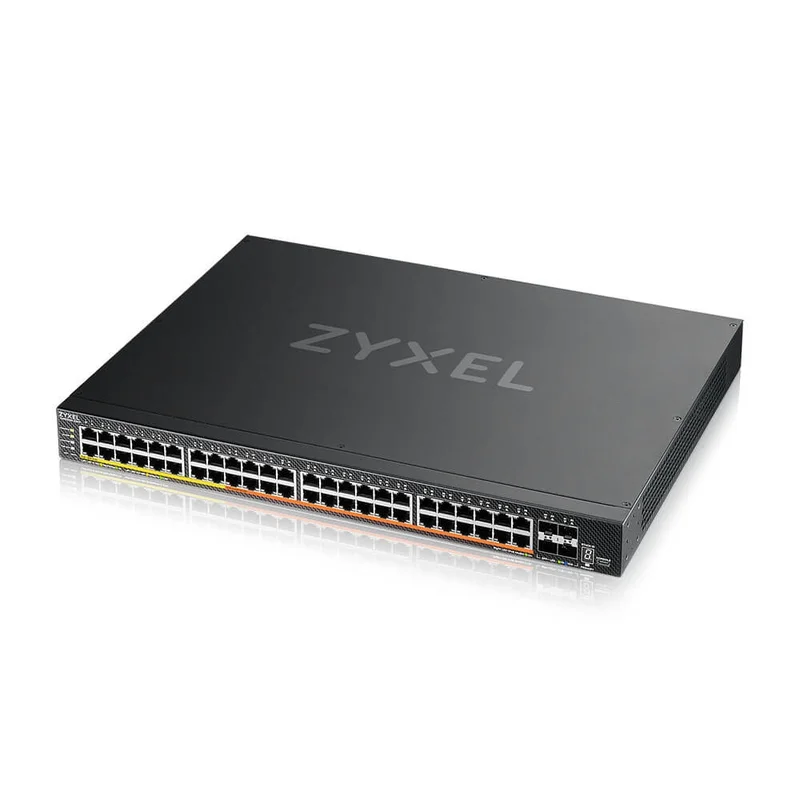

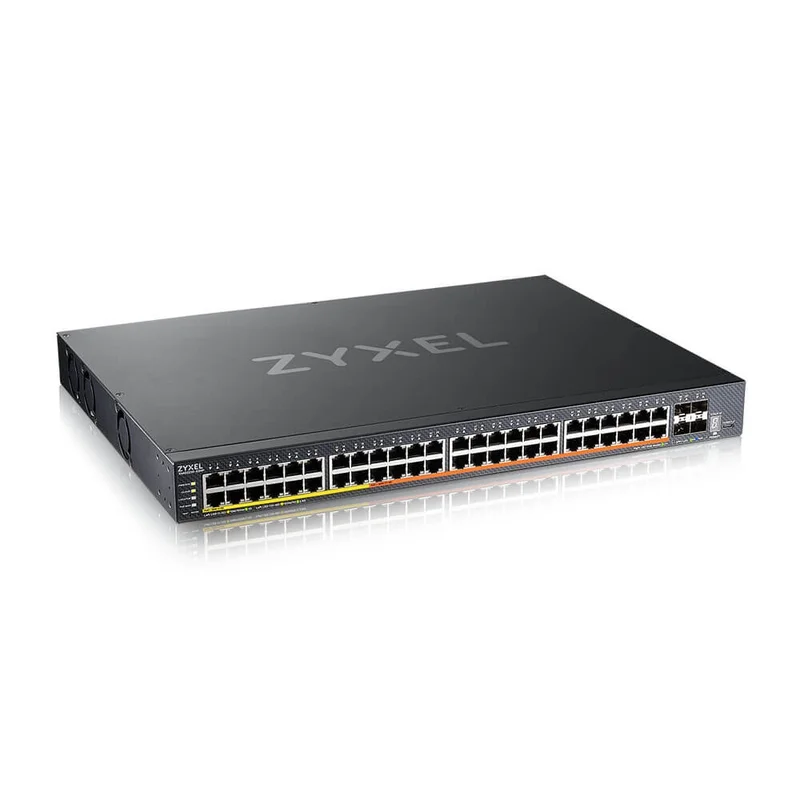

ZyXEL XMG2230-52HP, L3 Access Switch, 16x 2.5G, 32x 1G, AC:960W PoE , DC:2400W PoE, 4 x SFP+ Uplink, incl 1 yr NebulaFlex Pro

ZyXEL

ZyXEL XMG2230-52HP, L3 Access Switch, 16x 2.5G, 32x 1G, AC:960W PoE , DC:2400W PoE, 4 x SFP+ Uplink, incl 1 yr NebulaFlex Pro

Name: ZyXEL XMG2230-52HP, L3 Access Switch, 16x 2.5G, 32x 1G, AC:960W PoE , DC:2400W PoE, 4 x SFP+ Uplink, incl 1 yr NebulaFlex Pro
SKU: XMG2230-52HP-ZZ0101F
Price: 1786.20 EUR
Availability: BackOrder

XMG2230-52HP-ZZ0101F

ПЦД:1877,27 €

1786,20 €

Суич, тип: Fixed Port
Общ брой портове: 52
Основни портове, тип: 10/100/1000Base-T, 10/100/1000/2500Base-T
Power Over Ethernet (PoE): PoE++
Uplink портове: 4x10GE SFP
Свободни (10GB) слотове: No
Управление: Web
Stackable: No
Fans: Y
Захранване: External
Routing: Static
Памет (Flash, RAM): 64 MB/1 GB (Flash/RAM)
Капацитет за маршрутизиране/превключване, Gbps: 224 Gbps
Пропускателна способност, Mpps: 166.6 Mpps
MAC адреси: 32 K
VLAN (брой, стандарти): 802.1Q static VLANs/dynamic VLANs: 4K/4K; Port-based VLAN, VLAN isolation, Vendor ID based/Protocol-based/IP subnet-based/MAC-based/ Private/Voice VLAN; Independent VLAN Learning (IVL); VLAN Translation/ trunking/ mapping;IEEE 802.1AD VLAN stacking (QinQ)
QoS: No. of hardware queues per port: 8/6; Storm control and event log: Broadcast, multicast, unknown unicast (DLF); Port-based rate limiting (ingress/ egress); Rate limiting per IP/TCP/UDP per port; 802.1p CoS (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
L2 мрежови стандарти: IEEE 802.3z, IEEE 802.3ab/an/bz/ae/az
L3 мрежови стандарти: RFC 2464, RFC 4291, RFC 4213; RFC 4443; RFC 1981, RFC 5095; RFC 4861
IPv6 functionality: IPv6 over Ethernet;IPv6 addressing architecture, Dual stack; ICMPv6; Path MTU; Minimum path MTU size of 1280; Encapsulation for maximum PMTU of 1500; Neighbor discovery; DHCPv6 snooping; IPv6 binding- static/dynamic; Extend Radius server; DHCPv6 relay
Сигурност: Port security; L2 MAC filtering; L3 IP filtering; L4 TCP/UDP socket filtering; Static MAC forwarding; Multiple RADIUS servers; Multiple TACACS+ servers; 802.1x VLAN and 802.1p assignment by RADIUS; TACACS+; RADIUS; SSH; SSL; DHCP; ARP
Размери (Ш, Д, В), mm: 441 x 330 x 44 mm
Опция за монтаж: Rackmount
Други: Rack mounting kit included; incl. 1 yr NebulaFlex Pro; Managenility: SNMP v1, v2c, v3; SNMP trap group; RMON (1, 2, 3, 9); ICMP echo/echo reply; Syslog; Display port utilization
Weight: 6 kg
Dimensions: 59.3 x 50.9 x 6.9 cm
Warranty: 60 months

Суич, тип: Fixed Port
Общ брой портове: 52
Основни портове, тип: 10/100/1000Base-T, 10/100/1000/2500Base-T
Power Over Ethernet (PoE): PoE++
Uplink портове: 4x10GE SFP
Свободни (10GB) слотове: No
Управление: Web
Stackable: No
Fans: Y
Захранване: External
Routing: Static
Памет (Flash, RAM): 64 MB/1 GB (Flash/RAM)
Капацитет за маршрутизиране/превключване, Gbps: 224 Gbps
Пропускателна способност, Mpps: 166.6 Mpps
MAC адреси: 32 K
VLAN (брой, стандарти): 802.1Q static VLANs/dynamic VLANs: 4K/4K; Port-based VLAN, VLAN isolation, Vendor ID based/Protocol-based/IP subnet-based/MAC-based/ Private/Voice VLAN; Independent VLAN Learning (IVL); VLAN Translation/ trunking/ mapping;IEEE 802.1AD VLAN stacking (QinQ)
QoS: No. of hardware queues per port: 8/6; Storm control and event log: Broadcast, multicast, unknown unicast (DLF); Port-based rate limiting (ingress/ egress); Rate limiting per IP/TCP/UDP per port; 802.1p CoS (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
L2 мрежови стандарти: IEEE 802.3z, IEEE 802.3ab/an/bz/ae/az
L3 мрежови стандарти: RFC 2464, RFC 4291, RFC 4213; RFC 4443; RFC 1981, RFC 5095; RFC 4861
IPv6 functionality: IPv6 over Ethernet;IPv6 addressing architecture, Dual stack; ICMPv6; Path MTU; Minimum path MTU size of 1280; Encapsulation for maximum PMTU of 1500; Neighbor discovery; DHCPv6 snooping; IPv6 binding- static/dynamic; Extend Radius server; DHCPv6 relay
Сигурност: Port security; L2 MAC filtering; L3 IP filtering; L4 TCP/UDP socket filtering; Static MAC forwarding; Multiple RADIUS servers; Multiple TACACS+ servers; 802.1x VLAN and 802.1p assignment by RADIUS; TACACS+; RADIUS; SSH; SSL; DHCP; ARP
Размери (Ш, Д, В), mm: 441 x 330 x 44 mm
Опция за монтаж: Rackmount
Други: Rack mounting kit included; incl. 1 yr NebulaFlex Pro; Managenility: SNMP v1, v2c, v3; SNMP trap group; RMON (1, 2, 3, 9); ICMP echo/echo reply; Syslog; Display port utilization
Weight: 6 kg
Dimensions: 59.3 x 50.9 x 6.9 cm
Warranty: 60 months

ZyXEL XMG2230-52HP, L3 Access Switch, 16x 2.5G, 32x 1G, AC:960W PoE , DC:2400W PoE, 4 x SFP+ Uplink, incl 1 yr NebulaFlex Pro
