HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедураСпецификации

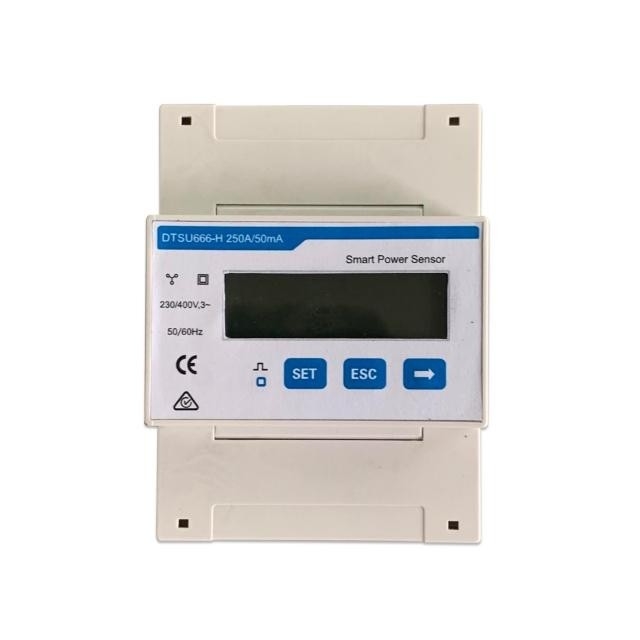

- КапацитетClass 1 measurement accuracy; LCD display, easy to set and check; Overall power consumption <= 1 W
- Х-ка 2Power grid type: 3P4W/3P3W, Input voltage (phase voltage): 176 Vac ~ 288 Vac, Power consumption: <= 1 W
- Х-ка 3Line voltage: 304 Vac ~ 499 Vac, Phase voltage: 176 Vac ~ 288 Vac, Current: 0 ~ 250 A
- Х-ка 4Measurement Accuracy: Voltage (±0.5 %), Current/Power/Energy (±1 %), Frequency (±0.01 Hz)
- Х-ка 5Interface: RS485, Baud rate: 9600 bps, Communication protocol: Modbus-RTU
- Х-ка 6Operating temperature range: -25 °C to 60 °C, Storage temperature range: -40 °C to 70 °C, Operating humidity: 5% RH - 95% RH (non-condensing)
- Х-ка 7Mounting type: DIN35 Rail; Dimension (H x W x D): 100 x 72 x 65.5 mm, Weight (including cables): 1.5 kg
- Гаранция, м.24 месеца
- Приложениеза бизнеса и за дома
- Х-ка 1Class 1 measurement accuracy; LCD display, easy to set and check; Overall power consumption <= 1 W
