HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедураСпецификации

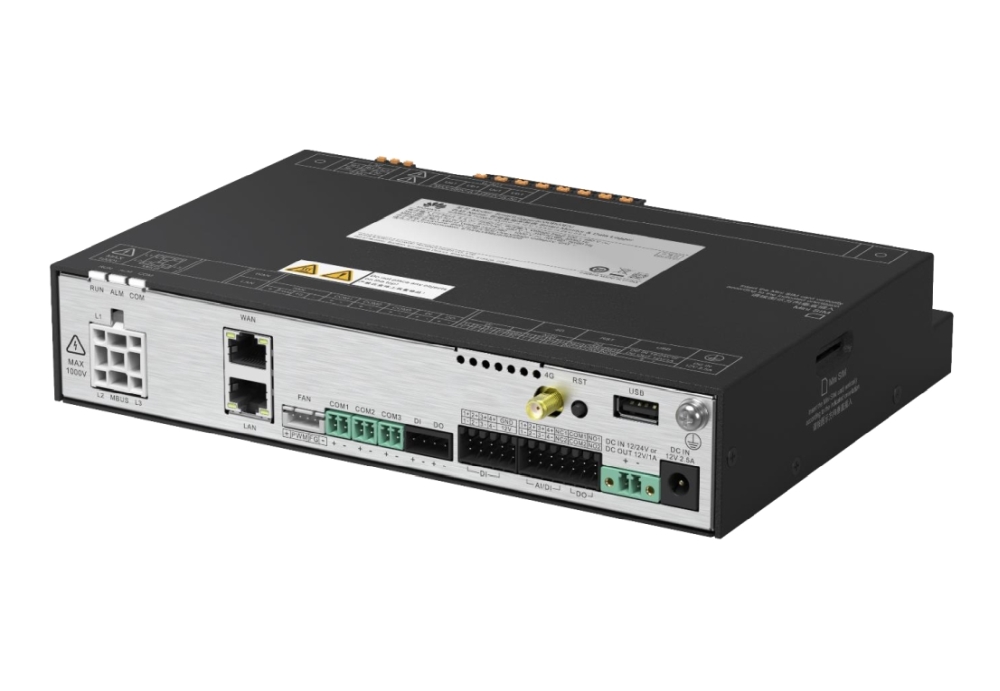

- КапацитетMax. Number of Connected Devices: Only PV: 80*inverters; only Battery: 50*ESS cabinets, 10MWh; PV+Battery: 30*inverters+20*ESS cabinets (*Note: SmartModuleis required when access more than 1 ESS cabinet)
- Х-ка 2Communications ports: WAN x1, 10/100/1000 Mbit/s; LAN x1, 10/100/1000 Mbit/s; MBUS - Maximum AC voltage: 1000 V (±10%); maximum communication distance: 500 m; RS485 - COM x 3, maximum communication distance: 1000 m; support 2G/3G/4G
- Х-ка 3DI x 4, DO x 2. DI ports can receive passive dry contact signals, and DO ports support a maximum of 12 V signal voltage; AI x 4 (three channels of current-type input + one channel of voltage-type input). The AI mode can be set to DI mode through software.
- Х-ка 4Display: LED x 3 – RUN, ALM, 4G; USB 2.0 x 1; WLAN connection, used for commissioning
- Х-ка 5Operating Temperature Range: -40°C~60°C, Storage Temperature: -40°C~70°C, Relative Humidity (Non-condensing): 5%~95%, Max. Operating Altitude: 5000m
- Х-ка 6AC Power Supply: Adapter (100–240 V AC, 50 Hz/60 Hz), DC power supply: 12 V/24 V, Power consumption: Typical - 9 W; Maximum - 12 W
- Х-ка 7IP rating: IP20; Installation mode: Wall-mounted, guide rail-mounted, or desk-mounted
- Гаранция, м.24 месеца
- Приложениеза специализирана употреба
- Х-ка 8Dimensions (WxHxD): 225 x 160 x 44 mm (excluding mounting ears and antennas), Weight: 2 kg
- Х-ка 1Max. Number of Connected Devices: Only PV: 80*inverters; only Battery: 50*ESS cabinets, 10MWh; PV+Battery: 30*inverters+20*ESS cabinets (*Note: SmartModuleis required when access more than 1 ESS cabinet)
