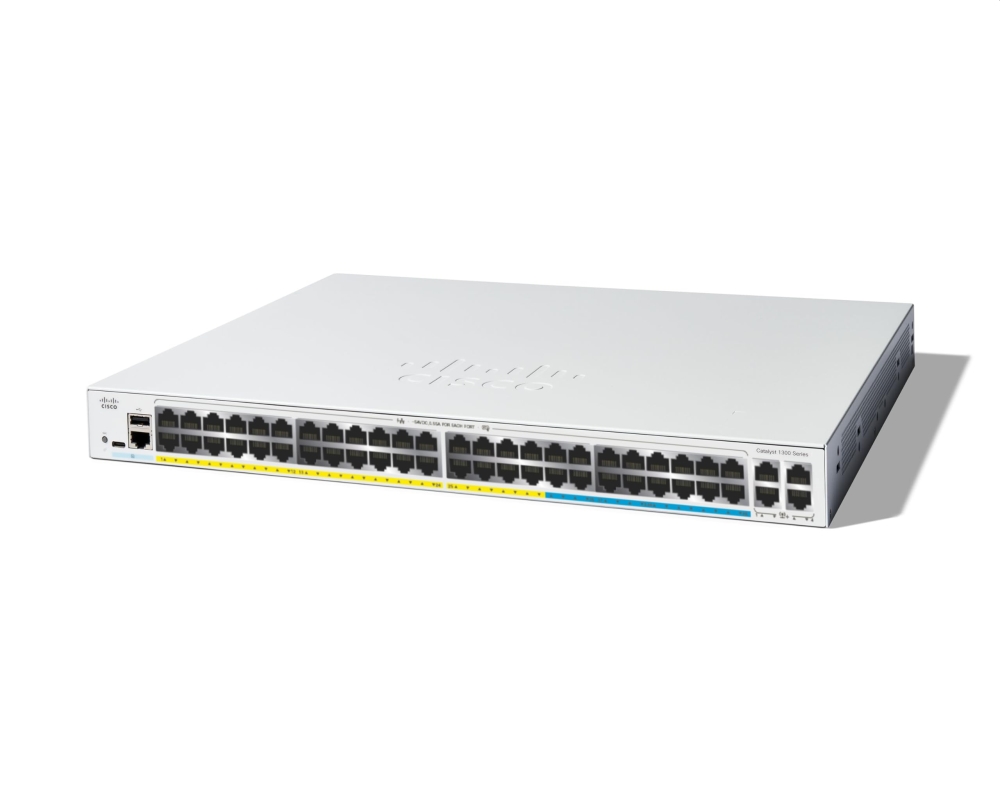

Cisco Catalyst 1300 16-port 2.5GE, 32-port GE, PoE, 4x10G SFP+

Cisco Catalyst 1300 16-port 2.5GE, 32-port GE, PoE, 4x10G... - 0

Брошура

Сервиз

ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Спецификации

Суич, тип
Fixed Port
Общ брой портове
54
Основни портове, тип
32x 10/100/1000Base-T +16x 10/100/1000/2500Base-T PoE+ports with 740W PoE power budget
Power Over Ethernet (PoE)
PoE+ (740W); 24 ports; 802.3at PoE+, 802.3af
Свободни (10GB) слотове
-
Управление
Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc.
Stackable
Hardware stacking: Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover
Fans
Fanless
Захранване
100-240V 50-60 Hz, internal, universal
Routing
Dynamic Layer 3 routing
Памет (Flash, RAM)
512 MB (Flash), 1 GB DDR4 (DRAM), 3 MB (Packet buffer)
Капацитет за маршрутизиране/превключване, Gbps
224 Gbps
Пропускателна способност, Mpps
166.65 Mpps
MAC адреси
16 000 addresses
VLAN (брой, стандарти)
Support for up to 4093 VLANs simultaneously; Port-based/802.1Q tag-based/MAC-based/protocol-based/IP subnet-based/Management/Private/ Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS; ASV; Voice/Multicast TV VLAN
QoS
8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u/ab/ad/z/x/ae/an/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
IPv6 functionality
IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD
Сигурност
SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs
Uplink портове
4x10G SFP+
Гаранция, м.
99 месеца
Размери (Ш, Д, В), mm
445 x 350 x 44 mm
Опция за монтаж
Rackmount
Приложение
за бизнеса
