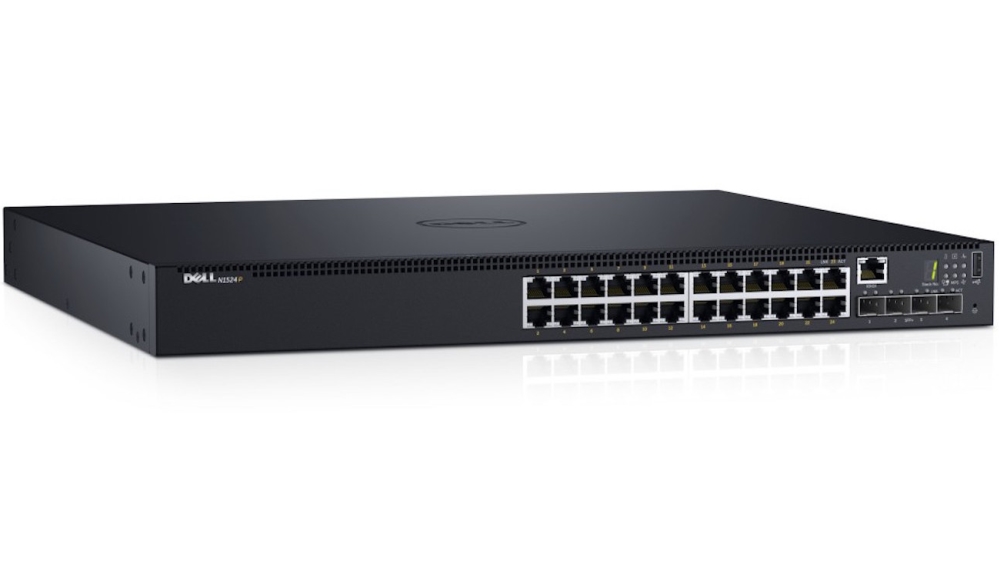

Name: Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, AC 210-AEVY CAMPUS Smart Value Dell EMC Networking N1524P
Brand: DELL
SKU: 2070a187-cf7a-11f0-aed7-0ab9880948b1
Price: 2068 EUR
Availability: PreOrder

Мрежови продукти
Мрежови продукти
Суичове
Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow,...

Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+... - 0

Брошура

Сервиз

Dell Technical Support: тел. 00800 1104478; ИНДЕКС - БЪЛГАРИЯ ООД, тел. *3355 (*DELL), (02) 903 4400, (02) 875 70 29, адрес: София 1784, Младост 1, бл. 54

Спецификации

Суич, тип
Fixed Port
Общ брой портове
28
Основни портове, тип
24x10/100/1000Base-T
Power Over Ethernet (PoE)
Support IEEE 802.3at PoE plus standard
Свободни (10GB) слотове
No
Управление
Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.
Stackable
Yes
Fans
Redundant variable speed fans
Захранване
Integrated power supply: 600W AC; Optional external power supply MPS1000 (sold separately)
Routing
Layer 3 RIP
Памет (Flash, RAM)
Flash Memory: 256 MB, RAM: 1 GB
Капацитет за маршрутизиране/превключване, Gbps
128 Gbps
Пропускателна способност, Mpps
128 Mpps
MAC адреси
16000 MAC address table size
VLAN (брой, стандарти)
802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private VLAN Edge support; 128 VLAN routing interfaces; 512 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24
QoS
8 priority queues per port, DiffServ, Flow Based QoS, Port Based QoS
L2 мрежови стандарти
IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae/at, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
L3 мрежови стандарти
Static routing and Routing Information ProtocoL (RIPv1, RIPv2); 128 RIP routing interfaces
IPv6 functionality
General IPv6 protocols are supported
Сигурност
AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support
Други
RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive
Uplink портове
4x10GE SFP
Гаранция, м.
99 месеца
Размери (Ш, Д, В), mm
440 x 387 x 43
Опция за монтаж
Rackmount
Приложение
за бизнеса
