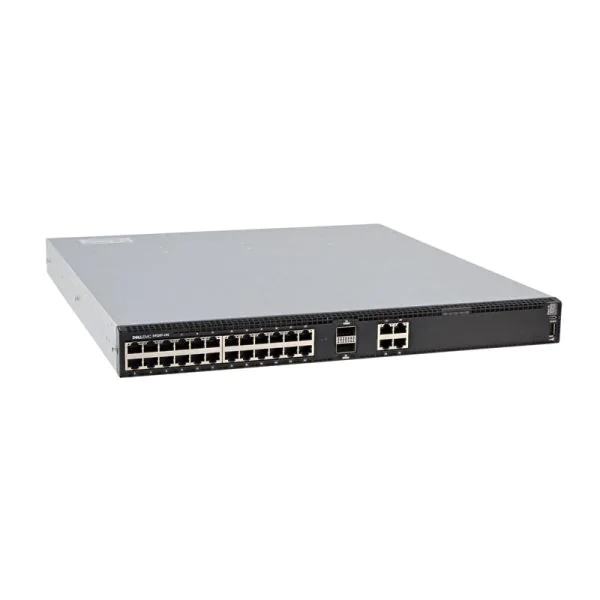

Name: Dell Switch S4128T-ON, 1U, 28 x 10Gbase-T, 2 x QSFP28, IO to PSU, 2 PSU, Dell Networking, Cable,40GbE (QSFP+) to 4 x 10GbE SFP+ Passive Copper Breakout Cable, 3 Meters, OS10 Enterprise
Brand: DELL
SKU: 2a96f10a-cf7a-11f0-aed7-0ab9880948b1
Price: 7177 EUR
Availability: PreOrder

Мрежови продукти
Мрежови продукти
Суичове
Dell Switch S4128T-ON, 1U, 28 x 10Gbase-T, 2 x QSFP28, IO to PSU, 2 PSU, Dell Networking,...

Dell Switch S4128T-ON, 1U, 28 x 10Gbase-T, 2 x QSFP28, IO... - 0

Сервиз

Dell Technical Support: тел. 00800 1104478; ИНДЕКС - БЪЛГАРИЯ ООД, тел. *3355 (*DELL), (02) 903 4400, (02) 875 70 29, адрес: София 1784, Младост 1, бл. 54

Спецификации

Суич, тип
Fixed Port
Общ брой портове
30
Основни портове, тип
28x 10GBase-T
Power Over Ethernet (PoE)
No
Свободни (10GB) слотове
No
Управление
SNMPv1/2; SSHv2; FTP, TFTP, SCP; Syslog; Port Mirroring; RADIUS; 802.1X; Support Assist (Phone Home); Netconf APIs; XML Schema; CLI Commit (Scratchpad); sFlow
Stackable
No
Fans
4x Fan module
Захранване
Redundant, hot-swappable power supplies
Routing
Layer 3 Advanced
Памет (Flash, RAM)
RAM: 4 GB
Капацитет за маршрутизиране/превключване, Gbps
960 Gbps
Пропускателна способност, Mpps
720 Mpps
MAC адреси
272K (in Scaled L2 mode)
VLAN (брой, стандарти)
802.1Q VLAN Tagging, GVRP; 4K Layer 2 VLANs; 500 Layer3 VLANs
QoS
Access Control Lists, Prefix List, Route-Map, Rate Shaping (Egress), Rate Policing (Ingress), Scheduling Algorithms (Round Robin, Weighted Round Robin, Deficit Round Robin, Strict Priority), Weighted Random Early Detect
L2 мрежови стандарти
IEEE compliance: 802.1AB, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3ae, 802.3ba, 802.3i, 802.3u, 802.3z, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1X, 802.3ac, 802.3bj, 802.3x, 802.1t
L3 мрежови стандарти
OSPF
IPv6 functionality
General IPv6 protocols are supported.
Сигурност
RADIUS, Radius and IPv6, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP Protocol
Други
1 RJ45 console/management port with RS232 signaling, 1 RJ45 micro-USB-B console port, 1 RJ45 10/100/1000Base-T management Ethernet port
Uplink портове
2xQSFP28
Гаранция, м.
12 месеца
Размери (Ш, Д, В), mm
431 x 457 x 44
Опция за монтаж
Rackmount
Приложение
за бизнеса
