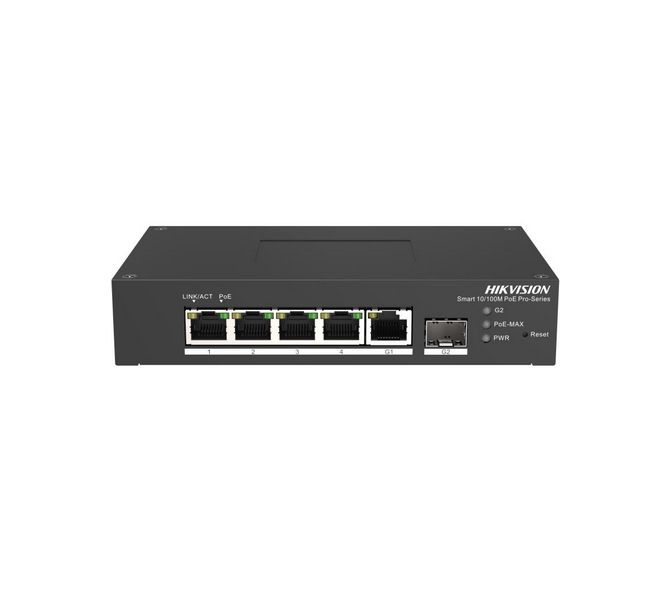

HikVision 6 Port Fast Ethernet Smart Harsh POE Switch, 4x 10/100 Mbps PoE port, 1x Gigabit RJ45...

HikVision 6 Port Fast Ethernet Smart Harsh POE Switch, 4x... - 0

Сервиз

ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Спецификации

Суич, тип
Fixed Port
Общ брой портове
6
Основни портове, тип
4x10/100Base-TX
Power Over Ethernet (PoE)
IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 4; Max. Port Power: 30 W; PoE Power Budget: 60 W
Свободни (10GB) слотове
No
Управление
Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client
Stackable
No
Захранване
48 V DC, 1.36 A; Max. Power Consumption: 65 W
Routing
Layer 2 Only
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
Whole-Device Performance: 14 Gbps, Port Performance: 4.8 Gbps
Пропускателна способност, Mpps
Whole-Device Performance: 10.42 Mpps, Port Performance: 3.57 Mpps
MAC адреси
2000 MAC address table size
VLAN (брой, стандарти)
VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN
QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance; Support port-based priority configuration; Support SP, WRR priority schedule mode
L2 мрежови стандарти
IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w
L3 мрежови стандарти
-
IPv6 functionality
-
Сигурност
6 kV Surge Protection, STP/RSTP loop prevention, Cable detection, Port rate-limiting, Storm control, DHCP Snooping
Uplink портове
1x10/100/1000Base-T, 1xSFP
Гаранция, м.
24 месеца
Размери (Ш, Д, В), mm
158.0 x 101.2 x 31.6 mm
Опция за монтаж
Desk-Mounted, Rail
Приложение
за бизнеса и за дома
